Various computer controlled devices I created for the testing of Nickel-Cadmium rechargeable cells. The devices were built to record and analyse the charge and disharge characteristics of both single cells and cells arranged in packs.

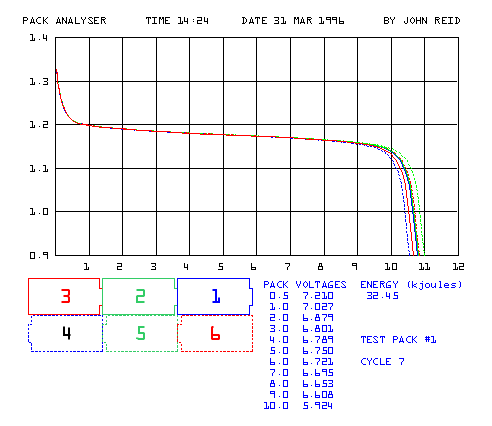

Graph from Pack Analyser
Mini-plotter output of the result of a discharge test on a pack, showing the mismatch between the cells.

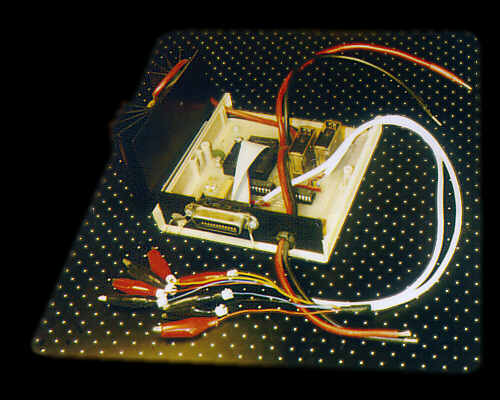

Pack analyser

Circuit boards
